MV Series Specifications

US
Metric

Overview

Strength

GVW
23,500 - 44,600 lbs.

Configurations

Axle Configurations
4x2 SBA
6x4 SBA

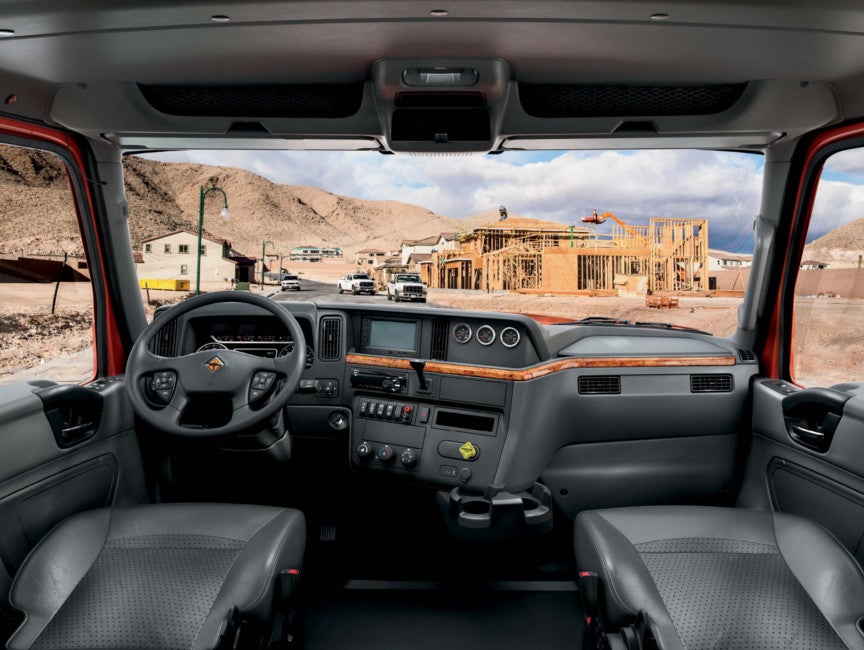

Cab Interior Trim Levels
Classic Diamond
Cab/Sleeper Configurations
Day Cab
Extended Cab

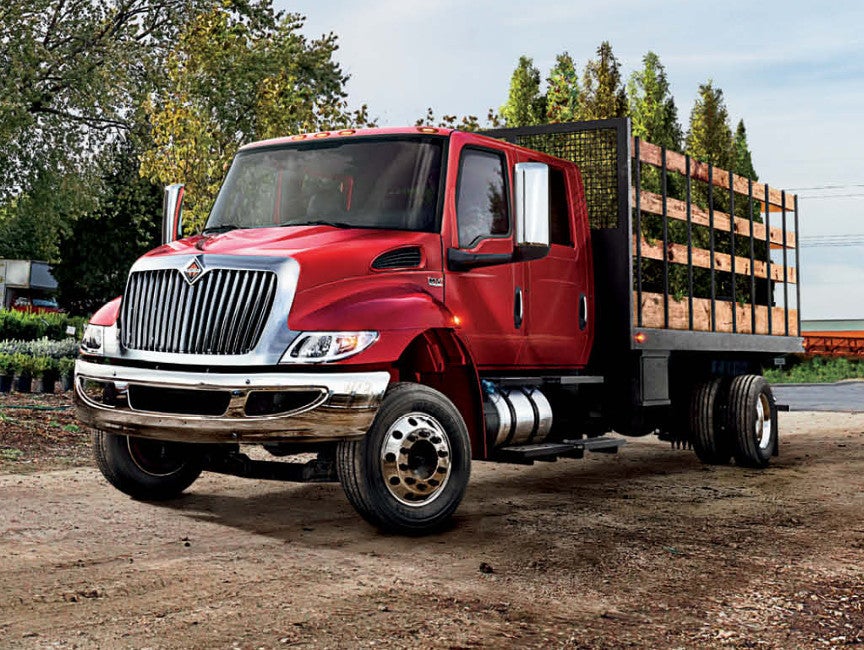

Crew Cab
Models
MV607: 107" BBC, 40" BA
MV60H: 107" BBC, 40" BA
Wheelbase Options
128-254"

Drivetrain

Engines

Cummins® B6.7:
200 hp, 520 lb.-ft. torque, up to 325 hp, 750 lb.-ft. torque

Cummins® L9:
Up to 350 hp, 1,000 lb.-ft. torque

Exhaust System
Single, Horizontal, After-treatment Device Frame Mounted Right, Under or Back of Cab, Horizontal or Vertical Tailpipe
Frame Rails

Clean CA available for body mounting

Heat-Treated Alloy Steel: 120,000 PSI

High Strength Low-Alloy Steel: 50,000 - 80,000 PSI

Front Axles

Dana Spicer: 8,000 - 14,000 lbs.

Meritor: 8,000 - 14,600 lbs.

Front Suspensions
Spring Parabolic Taper Leaf: 8,000 - 14,600 lbs.
Rear Axles

IROS Air Suspension Available for Single and Tandem Axle

Spring Single VariRate: 13,500 - 30,000 lbs.

Tandem, 4-Spring Multileaf: 34,000 - 40,000 lbs. (6x4)

Transmissions

Allison: 1000, 2000, 3000 Series (HS, EVS, RDS, MH) Automatic

Allison: 3000 TRV Series Automatic

Eaton® Fuller: 6-, 10-speed manual

Eaton® Procision: 7 speed Dual Clutch Automatic

Eaton Fuller Advantage: 10-speed Fully Automated Manual

Other Components

Alternators
12 Volt 160 - 325 amp
Battery Systems
12 Volt, 2 to 3 batteries
Brakes

Hydraulic Disc With Four Channel ABS

Air Brakes With ABS

Electrical System
Diamond Logic® Electrical System
Fuel Tanks
40 - 140 Gallon Non Polished and Polished Aluminum
Headlights
Long Life Halogen
Steering

TRW/Ross Power

Sheppard Power
