RH SERIES
US
Metric
Overview
Strength
GVW
32,000 - 60,000 lbs.
Configurations
Models/BBC/BA
113" BBC/ 50" BA BA
Axle Configurations
4x2
6x4
6x2
6x4
6x2
Cab Interior Trim Levels
Classic Trim
Diamond Trim
Diamond Trim
Cab/Sleeper Configurations

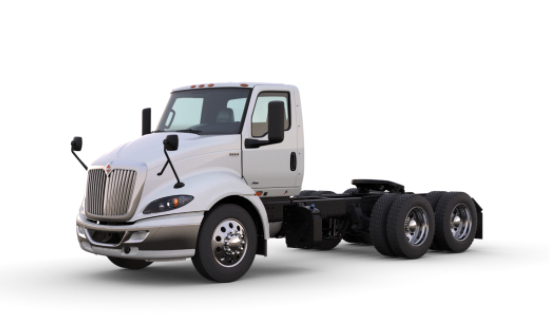

Day Cab
Day Cab with Roof Fairing

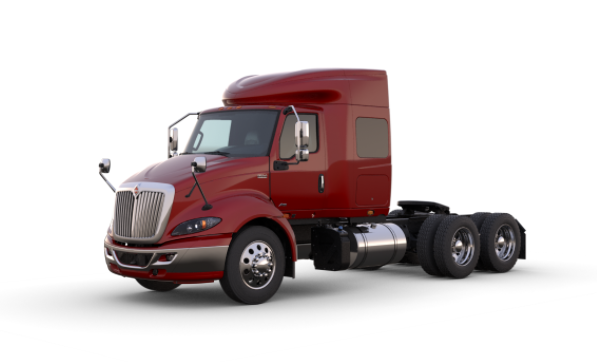

56" Hi-Rise Sleeper
56" Hi-Rise Sleeper with Roof Fairing
56" Low-Rise Sleeper
Day Cab with Roof Fairing
56" Hi-Rise Sleeper
56" Hi-Rise Sleeper with Roof Fairing
56" Low-Rise Sleeper
Wheelbase Options
Sleeper Cab
- 167-226" 4x2
- 187-240" 6x4
- 146-226" 4x2
- 152-240" 6x4
Drivetrain
Frame Rails
Heat Treated Alloy Steel 120,000 PSI
Front Axles
Hendrickson:
12,000 - 14,000 lbs.
Meritor: 12,000 - 14,000 lbs.
Dana Spicer: 12,000 - 14,000 lbs.
Meritor: 12,000 - 14,000 lbs.
Dana Spicer: 12,000 - 14,000 lbs.
Front Suspensions
Spring Monoleaf: 12,000-13,2000 lbs.
Parabolic Taperleaf: 12,000-14,000 lbs.
Parabolic Taperleaf: 12,000-14,000 lbs.
Rear Axles
Single Read Axle (4x2)
- Meritor: 23,000 lbs.
- Dana Spicer: 23,000 lbs.
- Meritor: 40,000-46,000 lbs.
- Dana Spicer: 40,000-46,000 lbs.
Rear Suspensions
Air Single
Hendrickson: HTB 40,000 lbs.
Hendrickson: HAS 46,000 lbs.
- International®: 20,000 lbs.
- International®: 23,5000 lbs. Vari-rate spring
Hendrickson: HTB 40,000 lbs.
Hendrickson: HAS 46,000 lbs.
Engines
International® A26: 370 – 450 hp and 1,350 – 1,750 lb.-ft. of torque
Transmissions
Eaton®: 9, 10, 13, 15, 18-Speed Manual
Eaton UltraShift® PLUS: 10, 13, 18-Speed Automated Manual
Eaton Fuller Advantage™ Series: 10-speed
Eaton UltraShift PLUS LSE 16-speed Transmission
Eaton UltraShift® PLUS: 10, 13, 18-Speed Automated Manual
Eaton Fuller Advantage™ Series: 10-speed
Eaton UltraShift PLUS LSE 16-speed Transmission
Exhaust Systems
Single canister after-treatment device
Frame Mounted Right Side, Under Cab
Includes Horizontal or Vertical Tailpipe and Guard; Optional Bright Tailpipe and Guard
Frame Mounted Right Side, Under Cab
Includes Horizontal or Vertical Tailpipe and Guard; Optional Bright Tailpipe and Guard
Other Components
Alternators
Bosch: 12 Volt, 160, 165, 200 Amp
Leece-Neville: 12 Volt, 160, 210, 325 Amp
Delco Remy: 12 Volt, 165, 200, 300 Amp
Leece-Neville: 12 Volt, 160, 210, 325 Amp
Delco Remy: 12 Volt, 165, 200, 300 Amp
Battery Systems
International®: 12 volt 1950- 3700 CCA
JCl: 12 Volt 2250- 3000 CA
Deka: 12 Volt 2800
Fleetrite®: 12 Volt 2800- 5600 CCA
Enersys Odyssey: 12 Volt 3450- 4600 CCA
JCl: 12 Volt 2250- 3000 CA
Deka: 12 Volt 2800
Fleetrite®: 12 Volt 2800- 5600 CCA
Enersys Odyssey: 12 Volt 3450- 4600 CCA
Fuel Tanks
Day Cab
- 70- 120 Gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of Cab
- 70- 140 Gallon, Single, Non-Polished or Polished Aluminum, Mounted Back of Cab
- 70- 120 Gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of Cab or Under Sleeper
- 70- 140 Gallon, Single, Non-Polished or Polished Aluminum, Mounted Back of Cab or Under Sleeper
Brakes
Air Drum Brakes with ABS with Optional Automatic Traction Control and Elevtronic Stability Control
Air Disc Brakes with Automoatic Traction Control, and Electronic Stability Control
Air Disc Brakes with Automoatic Traction Control, and Electronic Stability Control
Power Steering
Sheppard
TRW
TRW
Tires
Continental, Michelin, Bridgestone, Goodyear
